A

H

Delrin

Stainless steel

.125"
[3.175mm]

.6"
[15.24mm]

.315"
[8.001mm]

Guide (depth x width):
.1" x .2"
[2.54 x 5.08mm]

TLAser103™

TLAser122™

TLAser122s™

TLAser203™

TLAser222™

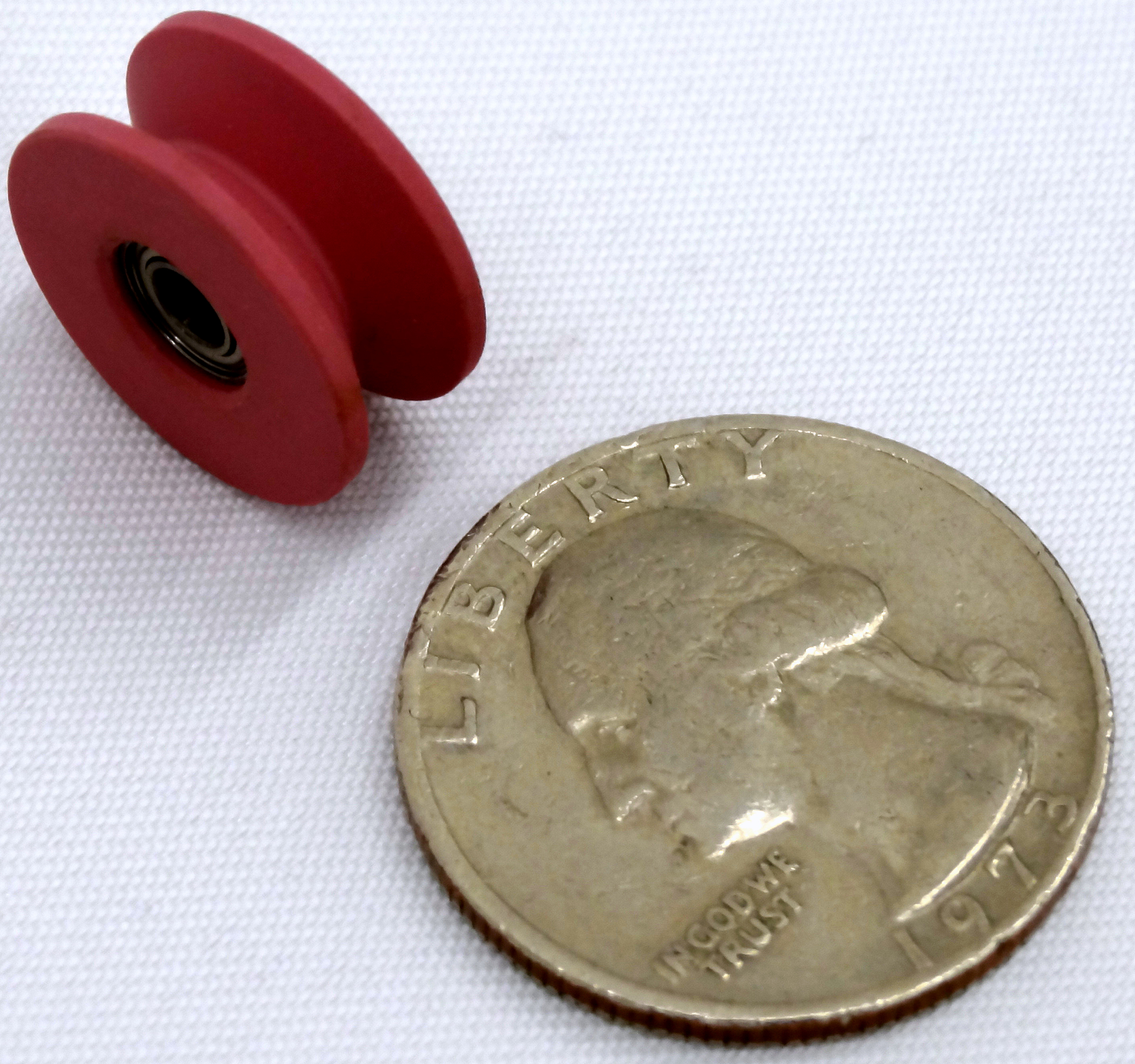

B

V

Ceramic

Stainless steel

.125”
[3.175mm]

.63”
[16mm]

.285”
[7.239mm]

V-diameter: .28” [7.112mm]

TLAser103

TLAser122

TLAser122s

TLAser203

TLAser222

C

V

Stainless steel

Ceramic

.25”
[6.35mm]

1.0”
[25.4mm]

.5”
[12.7mm]

V-diameter: .76” [19.304mm]

UltraGauge+™

D

V

Teflon

Glass

.25”
[6.35mm]

1.0”
[25.4mm]

.75”
[19.05mm]

V-diameter: .53” [13.462mm]

UltraGauge+

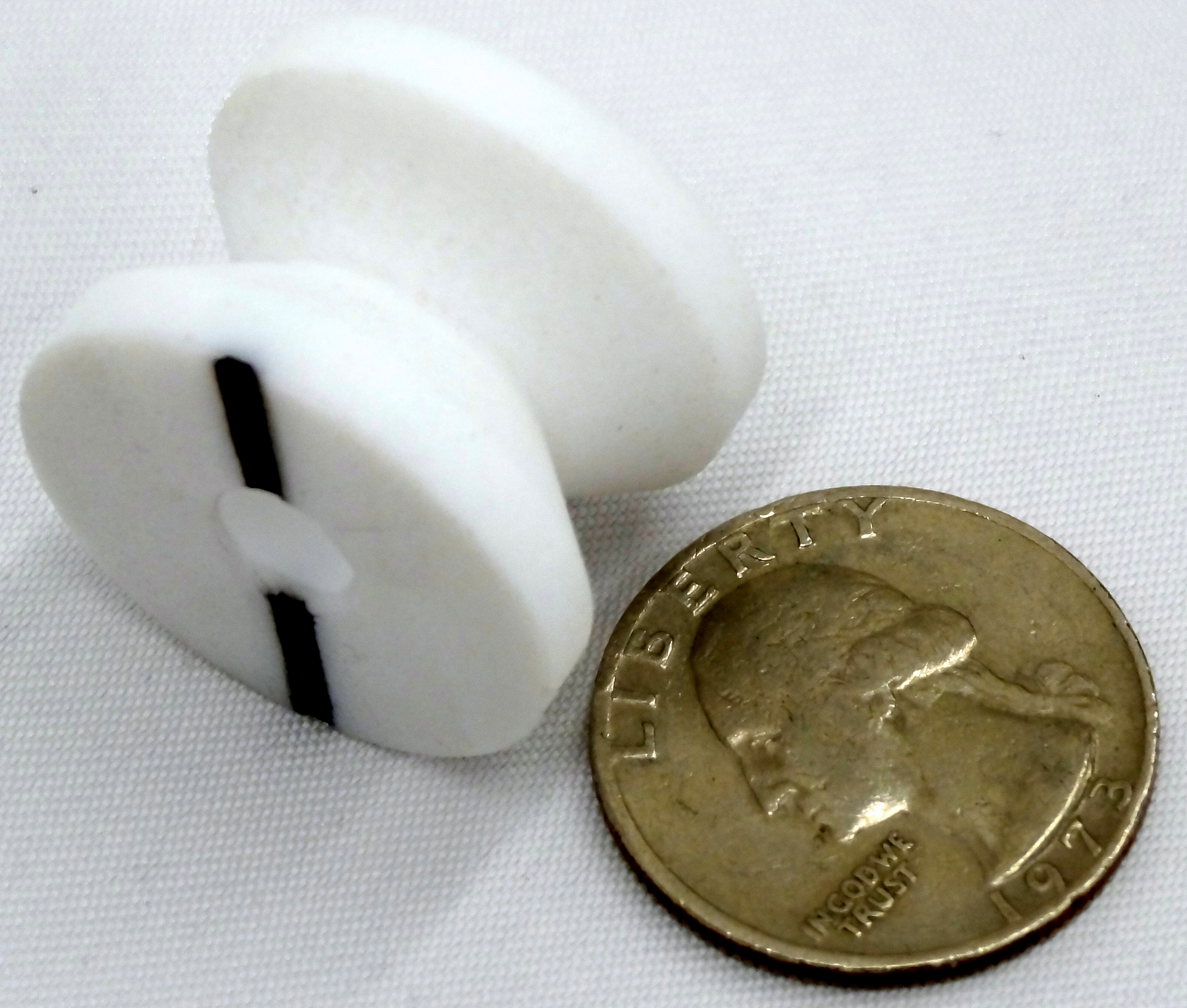

E

V

Teflon

none

.25”
[6.35mm]

1.0”
[25.4mm]

.75”
[19.05mm

V-diameter: .6” [15.24mm]

UltraGauge+

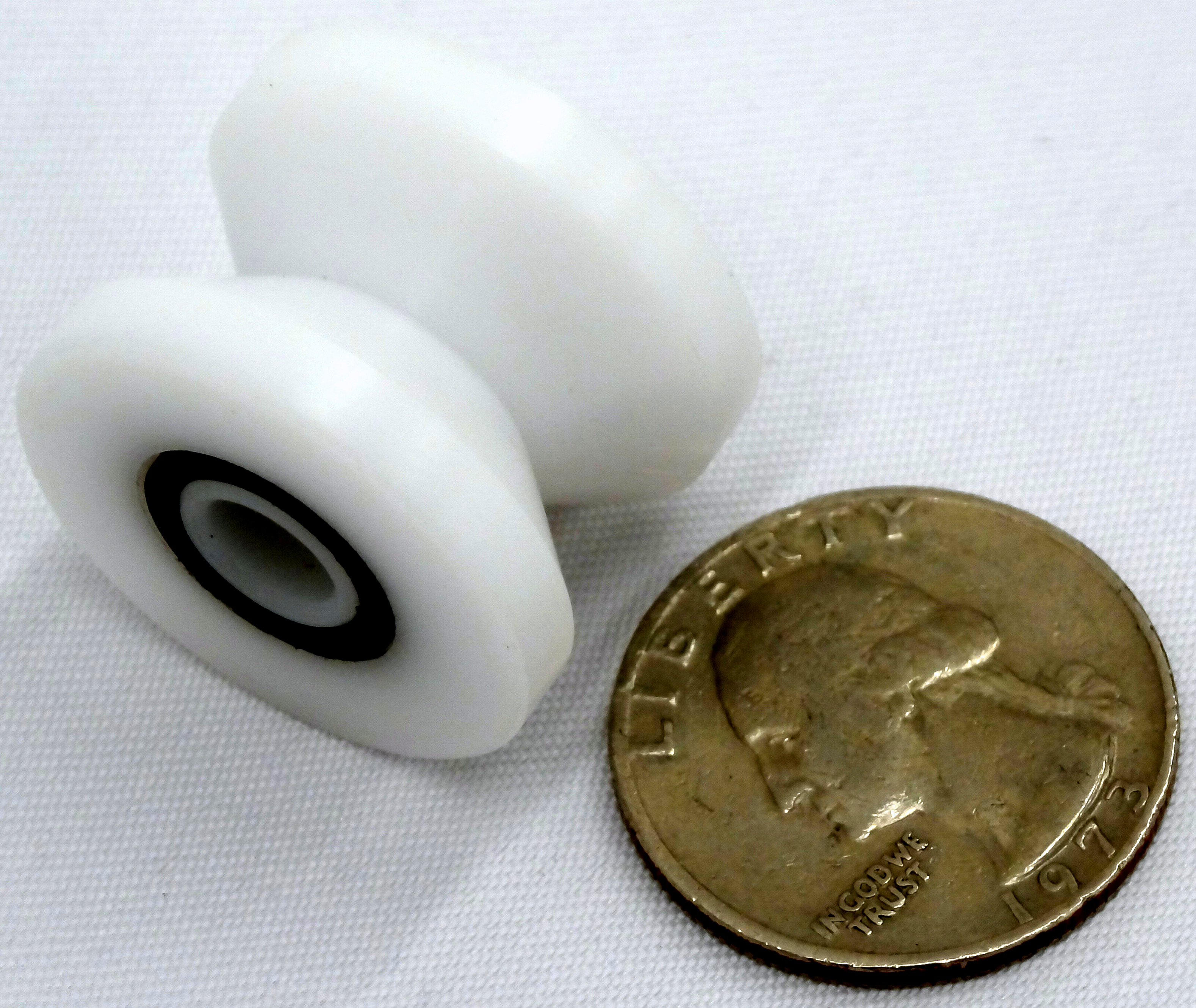

F

V

Teflon

Glass

.25”
[6.35mm]

1.0”
[25.4mm]

.75”
[19.05mm

V-diameter: .58” [14.732mm]

UltraGauge+

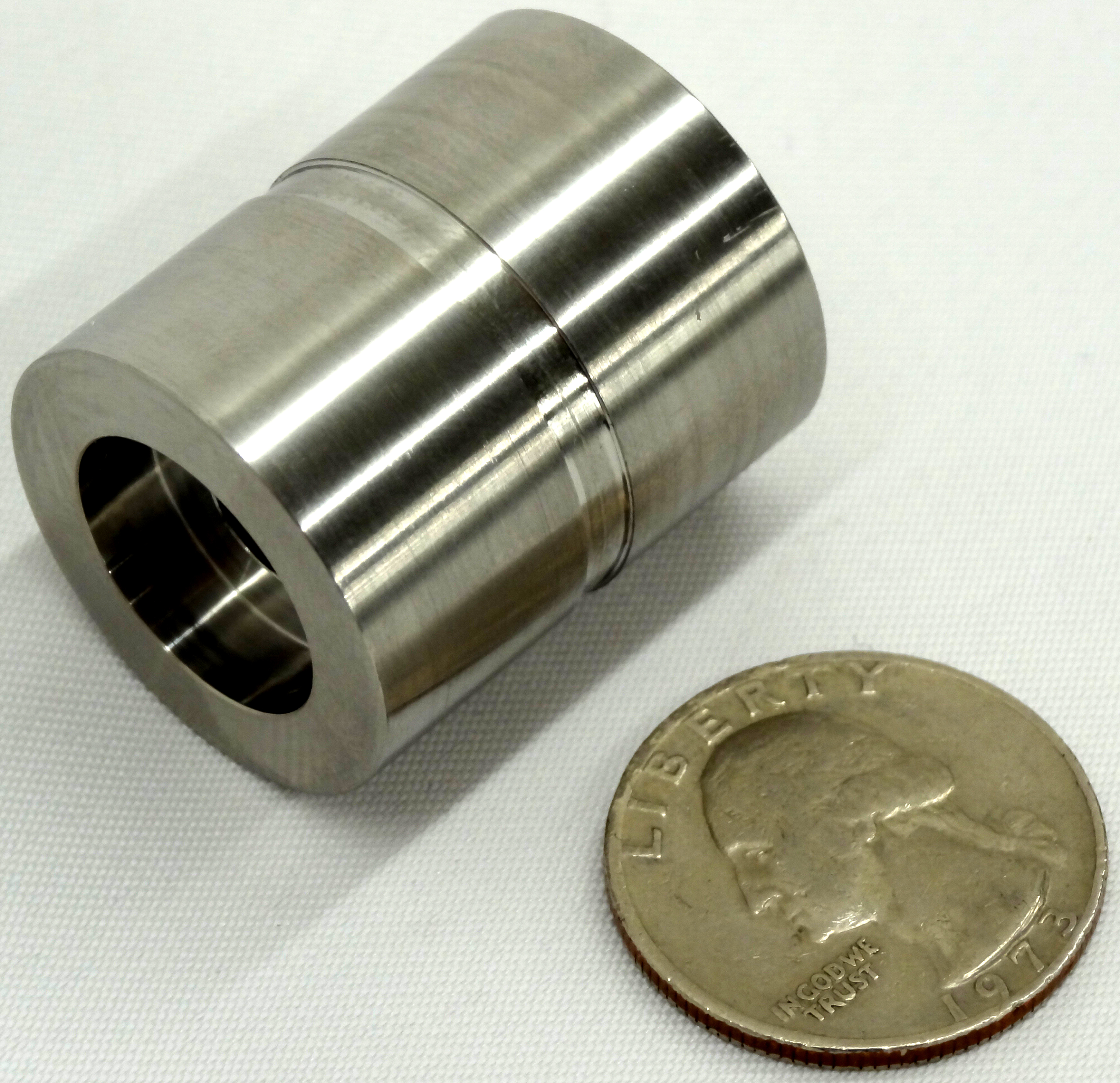

G

H

Stainless steel

Stainless steel

.25”
[6.35mm]

1.0”
[25.4mm]

1.25”
[31.75mm]

Depth and width of guide
are cut-to-order

TLAser122

TLAser122s

TLAser130s™

TLAser222

TLAser230™

Triton312™

Triton330™

Triton331™

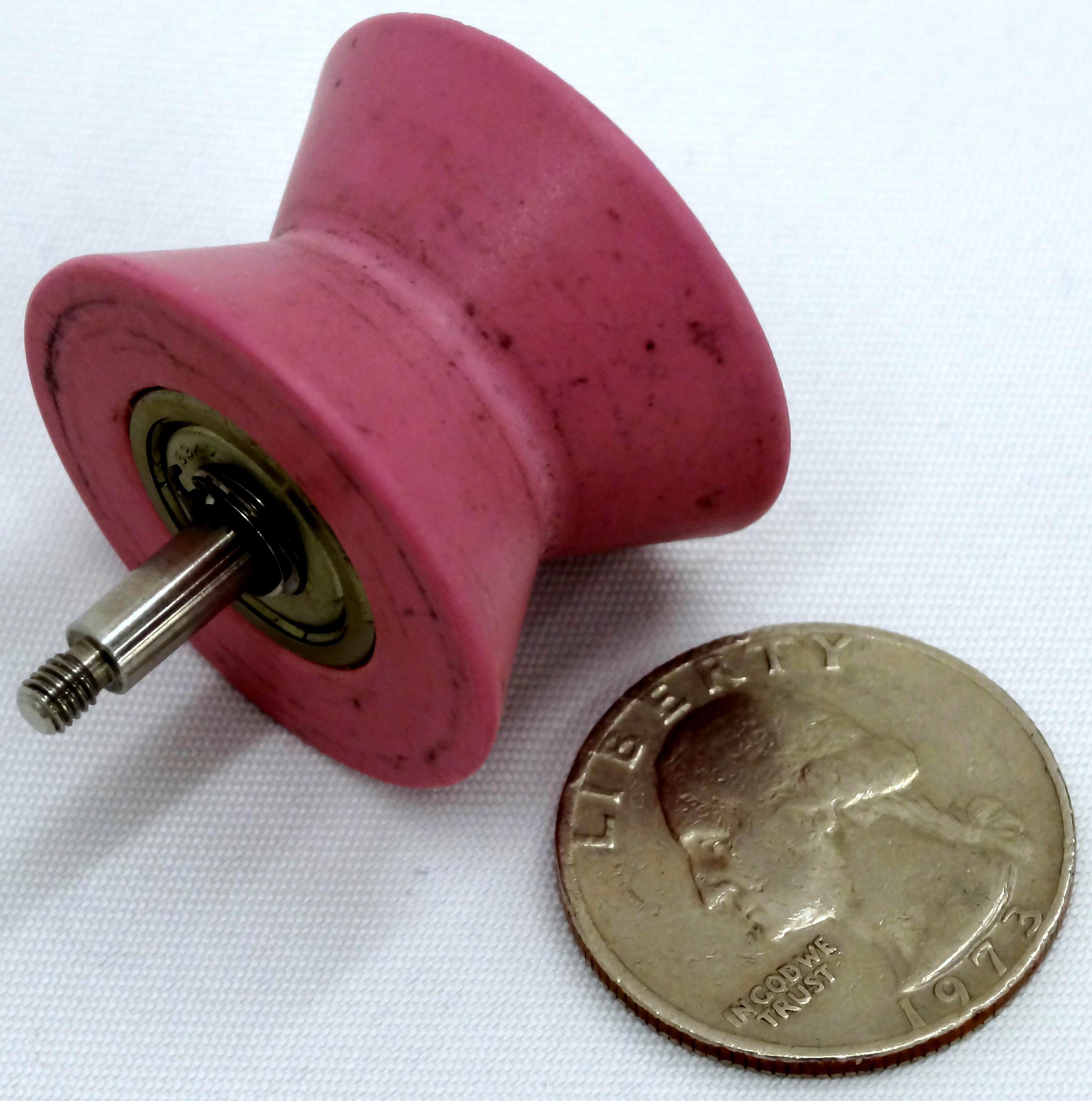

H

V

Ceramic

Stainless steel

.156”
[3.962mm]

1.19”
[30.226mm]

.83”
[21.082mm]

V-diameter: .75” [19.05mm]

TLAser122

TLAser122s

TLAser130s

TLAser222

TLAser230

Triton312

Triton330

Triton331

I

H with center rise

Stainless steel

Stainless steel

.25”
[6.35mm]

1.2”
[30.48mm]

.4”
[10.16mm]

UltraGauge+

J

V

Stainless steel

Stainless steel

.25”
[6.35mm]

1.35”
[34.29mm]

1.25”
[31.75mm]

V-diameter: .62” [15.748mm]

TLAser122

TLAser122s

TLAser130s

TLAser222

TLAser230

Triton312

Triton330

Triton331

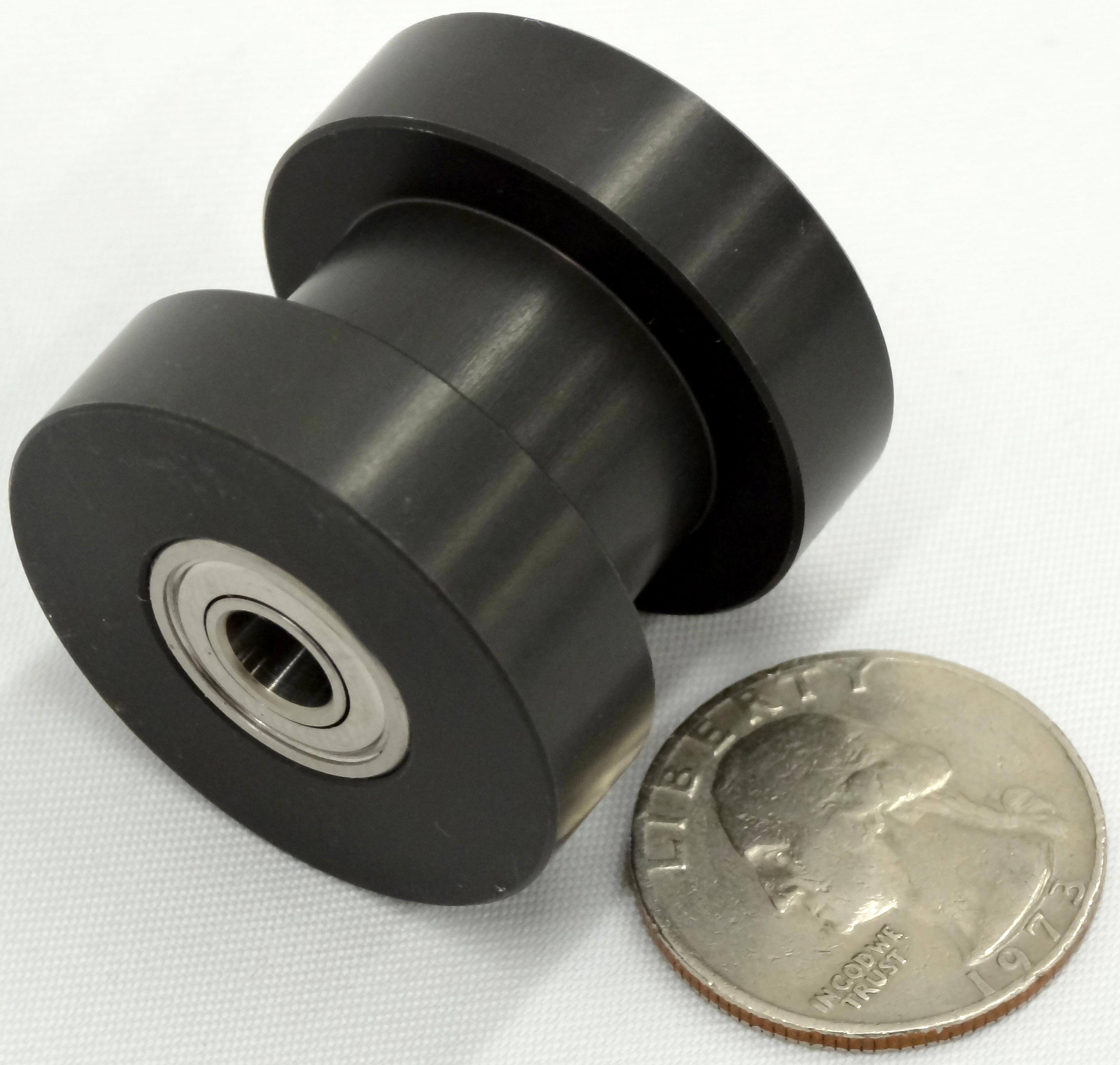

K

H

Hard anodized
aluminum

Stainless steel

.25”
[6.35mm]

1.3”
[33.02mm]

1.2”
[30.48mm]

Guide (depth x width):
.4” x .5”
[10.16 x 12.7mm]

TLAser122

TLAser122s

TLAser130s

TLAser222

TLAser230

Triton312

Triton330

Triton331

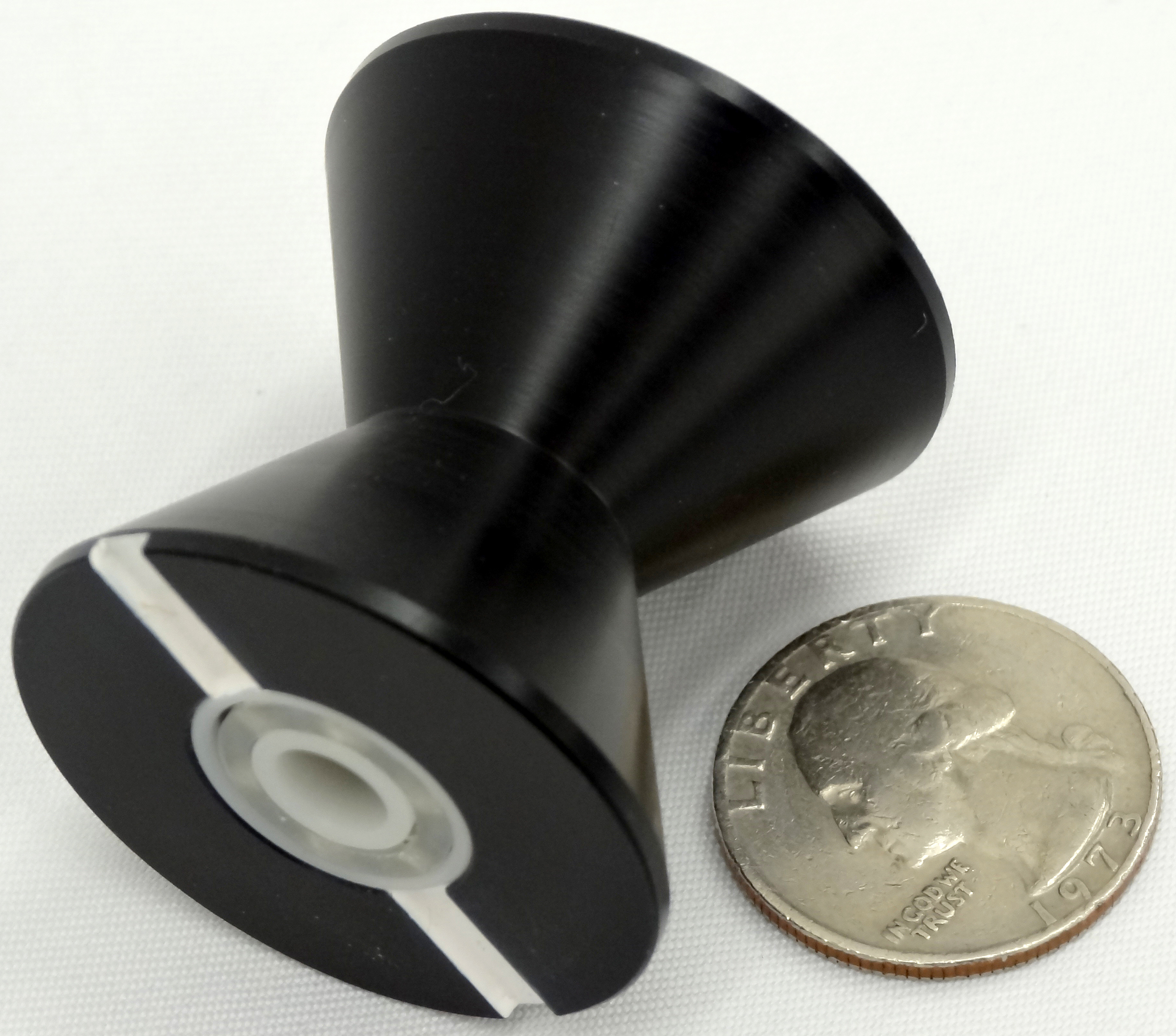

L

V

Delrin

Stainless steel

.25”
[6.35mm]

1.43”
[36.322mm]

1.5”
[38.1mm]

V-diameter: .66” [16.764mm]

TLAser122

TLAser122s

TLAser130s

TLAser222

TLAser230

Triton312

Triton330

Triton331

M

V

Ceramic

Stainless steel

.25”
[6.35mm]

1.55”
[39.37mm]

.785”
[19.939mm]

V-diameter: .78” [19.812mm]

TLAser122

TLAser122s

TLAser130s

TLAser222

TLAser230

Triton312

Triton330

Triton331

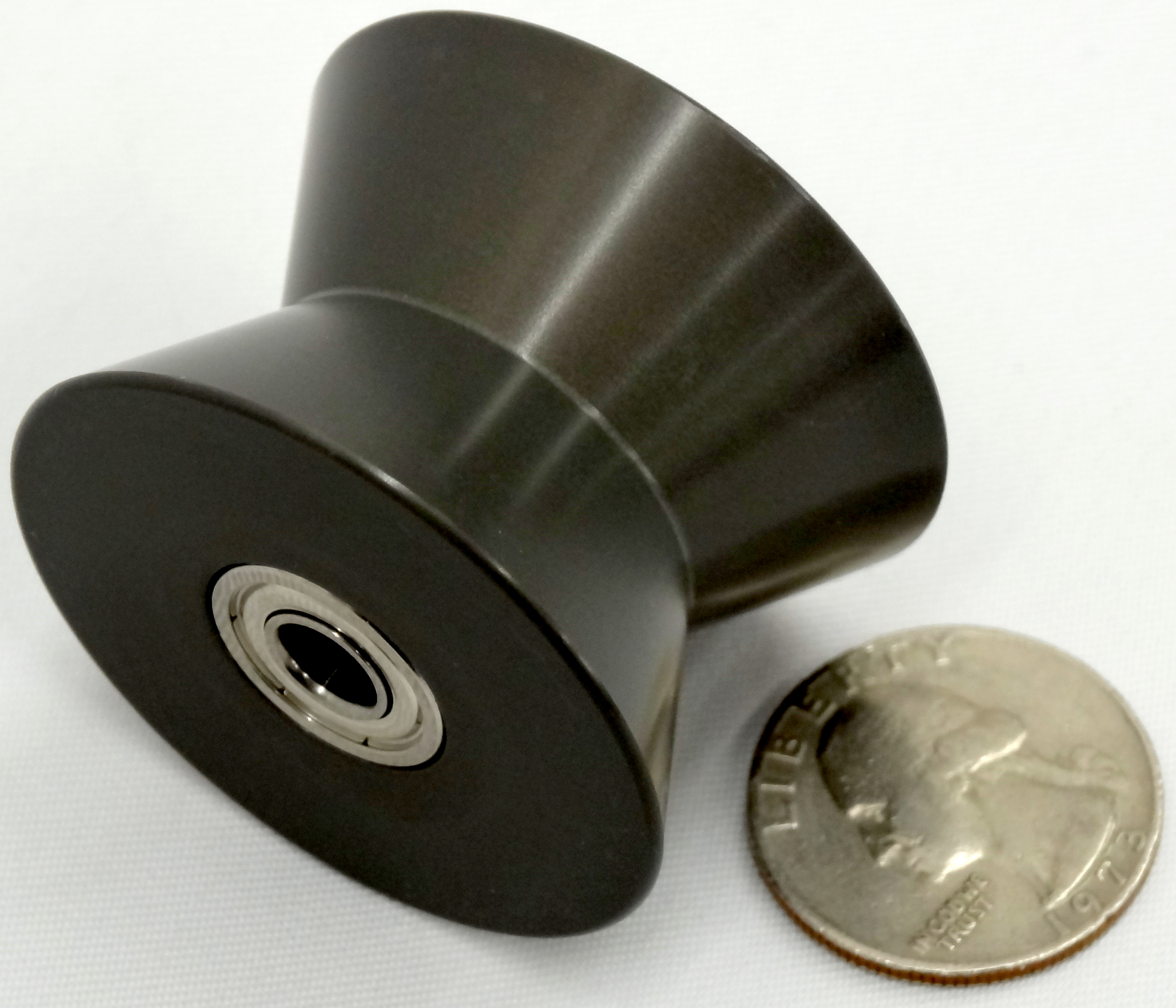

N

V

Hard anodized
aluminum

Stainless steel

.25”
[6.35mm]

1.7”
[43.18mm]

1.22”
[30.988mm]

V-diameter: 1.12” [28.448mm]

TLAser122

TLAser122s

TLAser130s

TLAser222

TLAser230

Triton312

Triton330

Triton331

O

V

Ceramic

Ceramic

.25”
[6.35mm]

1.76”
[44.704mm]

1.2”
[30.48mm]

V-diameter: 1.2” [30.48mm]

TLAser122

TLAser122s

TLAser130s

TLAser222

TLAser230

Triton312

Triton330

Triton331

P

U

Delrin

Stainless steel

.25”
[6.35mm]

1.75”
[44.45mm]

1.2”
[30.48mm]

U-diameter: 1.0” [25.4mm]

TLAser122

TLAser122s

TLAser130s

TLAser222

TLAser230

Triton312

Triton330

Triton331

Q

Double-H

Hard anodized
aluminum

Stainless steel

.25”
[6.35mm]

1.75”
[44.45mm]

1.2”
[30.48mm]

Inner guide (depth x width):
.5” x .75”
[12.7 x 19.05mm]

Outer guide:
.875” x .375”
[22.225 x 9.525mm]

TLAser122

TLAser122s

TLAser130s

TLAser222

TLAser230

Triton312

Triton330

Triton331

R

V

Hard anodized
aluminum

Stainless steel

.5”
[12.7mm]

2.1”
[53.34mm]

2.0”
[50.8mm]

V-diameter: 1.0” [25.4mm]

TLAser160s™

TLAser260™

Triton360™

S

V

Hard anodized
aluminum

Stainless steel

.5”
[12.7mm]

3.0”
[76.2mm]

3.0”
[76.2mm]

V-diameter: 1.25” [31.75mm]

TLAser1120s™

TLAser2120™
