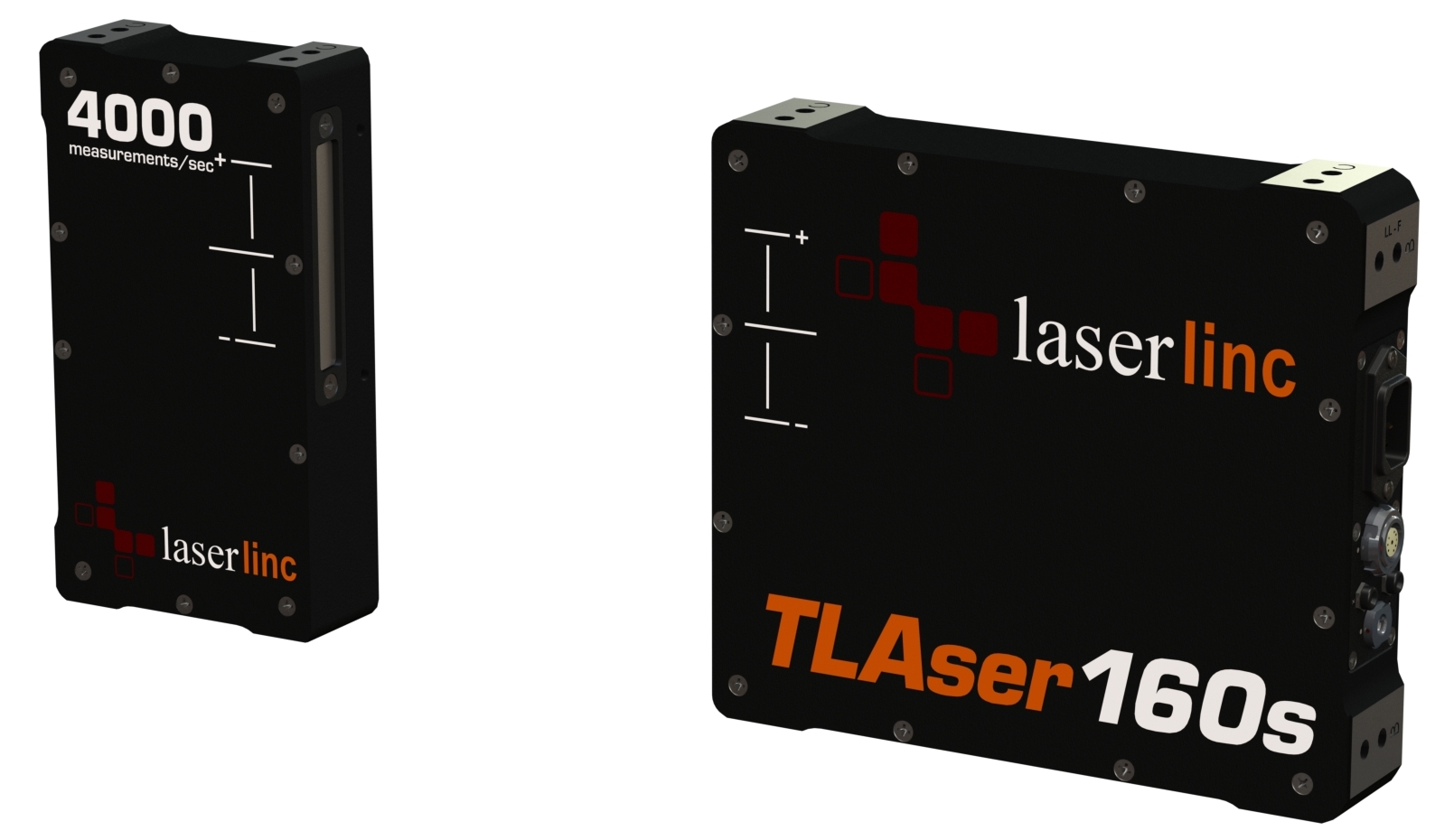

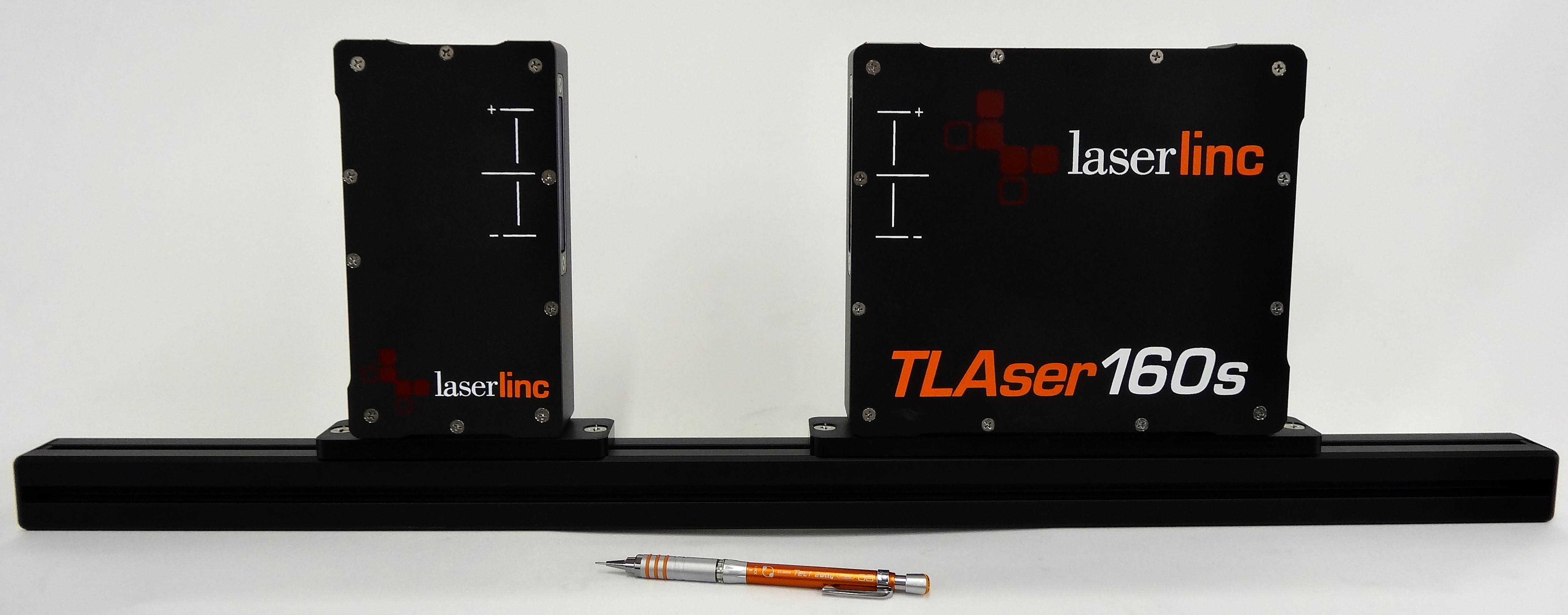

TLAser160s™ Specifications and Drawings
TLAser160s Drawings
Overall Mounting Dimensions (.pdf) - 144kb
Executable SolidWorks® e-drawing: Executable (.exe) - 6.24mb
Measurement Range
|
0.010˝ – 2.3˝ [.254mm – 58mm]
|
Axes of measurement
|
1 [see Single-Axis Laser Micrometers]
|
Gate Size
|
2.36" [60mm]
|
Measurements per second1
|
1600
4000 (optional) |
Resolution
|
.000001˝ [.025µm]
|
Repeatability2
|
|
Single Scan
|
±.0010˝ [±25µm]
|
Two Second
|
±.00002˝ [±.5µm]
|
Positional Error3
|
±.0002˝ [±5µm]
|
Approx. Dimensions
[H x W x D] |
Transmitter - 7.5˝ x 8.5˝ x 2˝ [191mm x 216mm x 51mm]
Receiver - 7.5˝ x 4˝ x 2˝ [191mm x 102mm x 51mm] |
Light Source
|
Visible red laser diode, Laser Class II, 675nm wavelength [nominal], < 1.0 mW
|
Approx. Weight
|
16 lbs [7.25kg]
|
Power requirements
|
100-240 VAC 50/60 Hz 50 W max.
|
Cabling
|
Standard lengths: 5, 10, 25, 50 , 75, and 100 feet [1.5, 3, 7.6, 15.2, 22.9, and 30.5 m]
Custom lengths, connectors, cable construction, etc., quoted on request |
Gauge Interface Options
|
|
Warranty
|
Four years, parts and labor. Read more here
|
1Measurement rate is the number of times per second the measurement field is scanned. 2Repeatability applies to parts 2.0" [51mm] and under. 3Positional error applies to center 2.0" [51mm]. ®SolidWorks is a registered trademark of Dassault Systèmes SOLIDWORKS Corp. |
|
