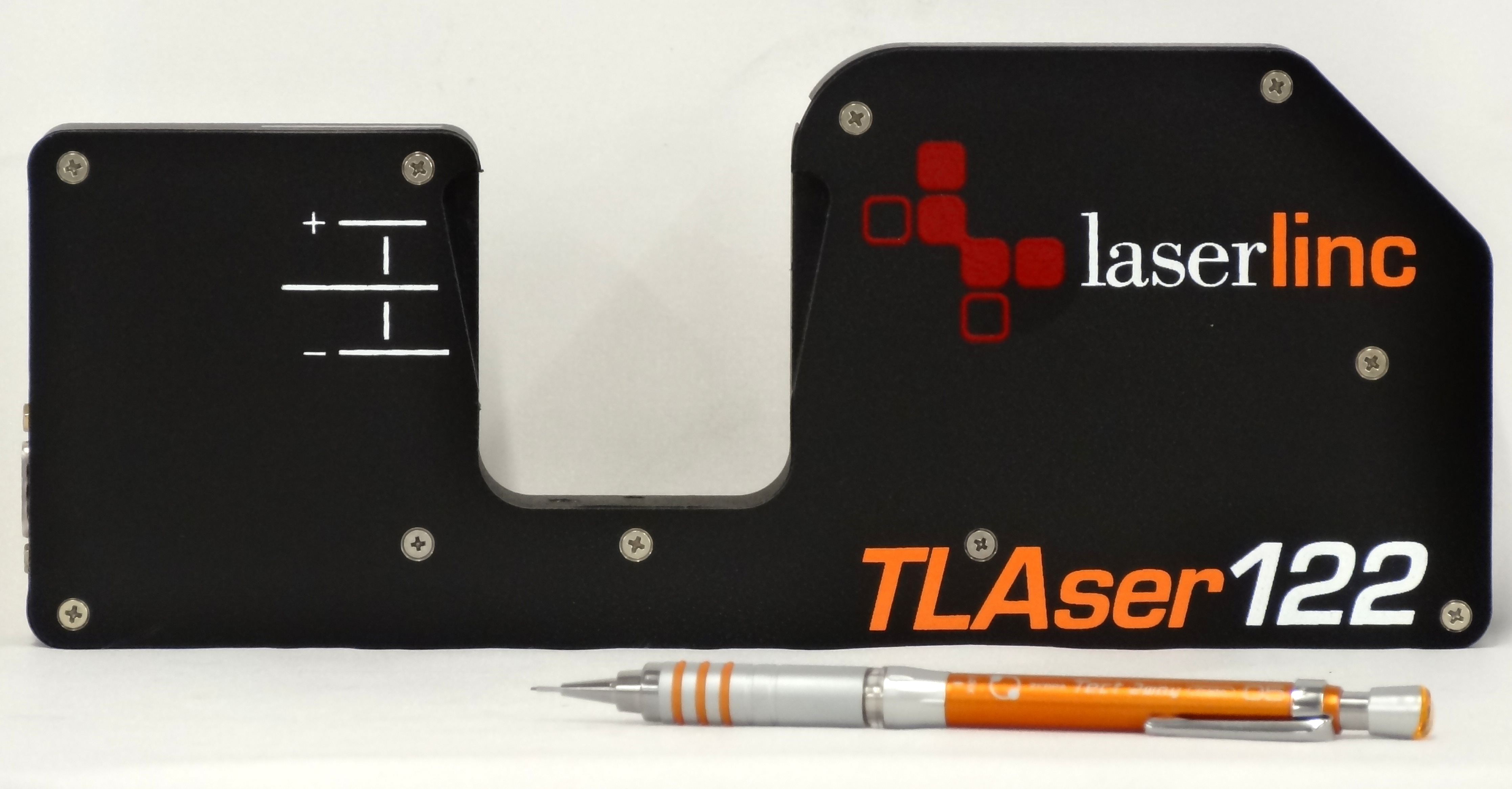

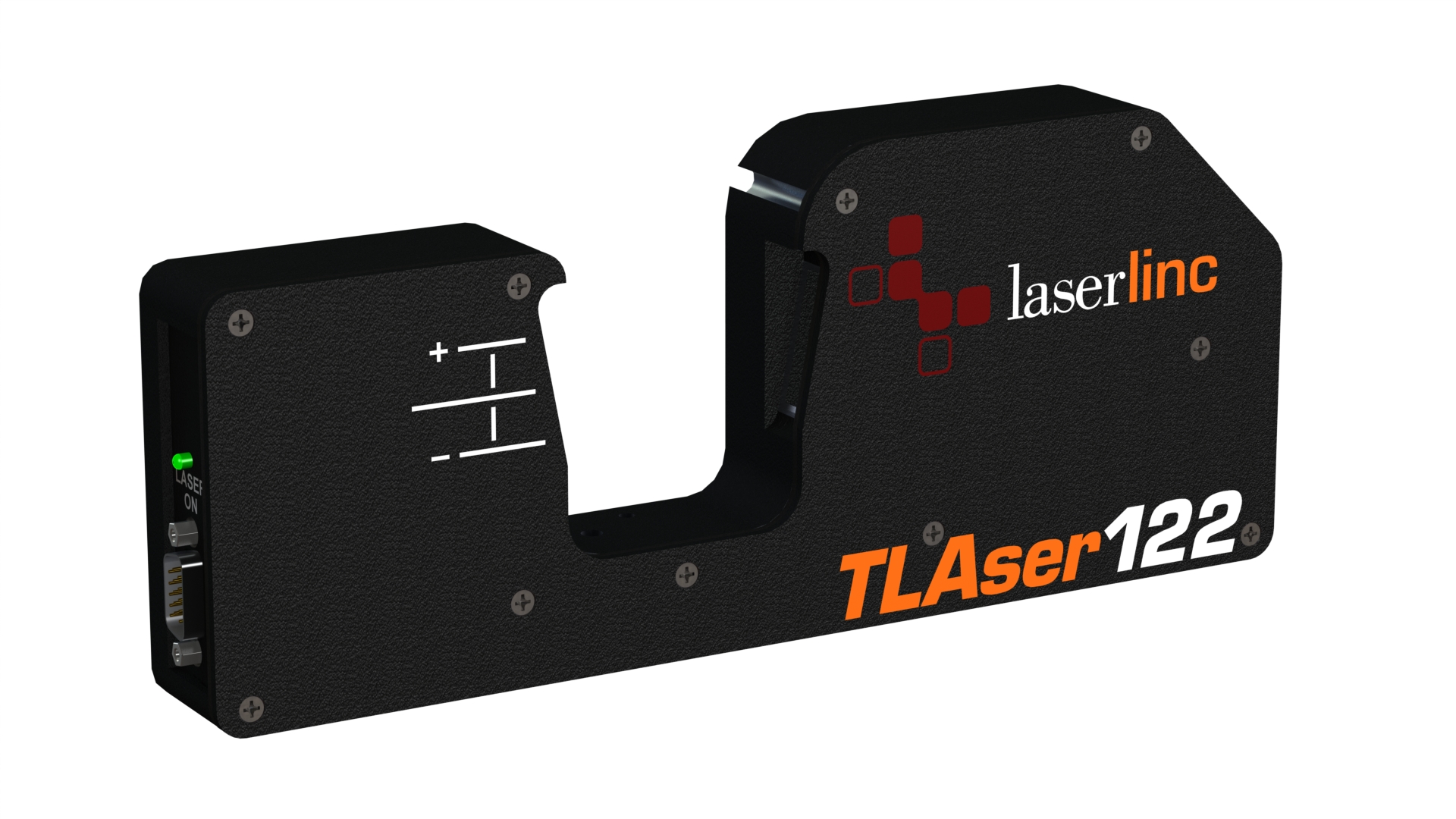

TLAser122™ Specifications and Drawings
TLAser122 Drawings
Overall Mounting Dimensions (.pdf) - 144kb
Executable SolidWorks® e-drawing: Executable (.exe) - 6.24mb
Measurement Range
|
.0015˝ – .866˝ [.038mm – 22mm]
|
Gate Size
|
.91˝ [23.1mm]
|
Axes of measurement
|
1 [see Single-Axis Laser Micrometers]
|
Measurements per second1
|
400
|
Resolution
|
.000001˝ [.025µm]
|
Repeatability2
|
|
Single Scan
|
±.0001˝ [±2.5µm]
|
Two Second
|
±.000005˝ [±.125µm]
|
Positional Error3
|
±.0001˝ [±2.5µm]
|
Approx. Dimensions
(H x W x D) |
4˝ x 10˝ x 1.25˝ [102mm x 254mm x 32mm]
|
Light Source
|
Visible red laser diode, Laser Class II, 675nm wavelength (nominal), < 1.0 mW
|
Approx. Weight
|
2.6 lbs [1.2kg]
|
Power requirements
|
+12VDC 125mA, +5VDC 75mA, –5VDC 50mA
Provided by host PC or external NetLinc |
Cabling
|
Standard lengths: 5, 10, 25, 50 , 75, and 100 feet [1.5, 3, 7.6, 15.2, 22.9, and 30.5 m]
Custom lengths, connectors, cable construction, etc., quoted on request |
Gauge Interface Options
|
|
Warranty
|
Four years, parts and labor. Read more here
|
1Measurement rate is the number of times per second the measurement field is scanned. 2Repeatability applies to parts 0.8" [20.4mm] and under. 3Positional error applies to center 0.79" [20.3mm]. ®SolidWorks is a registered trademark of Dassault Systèmes SOLIDWORKS Corp. |
|
